Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
Application

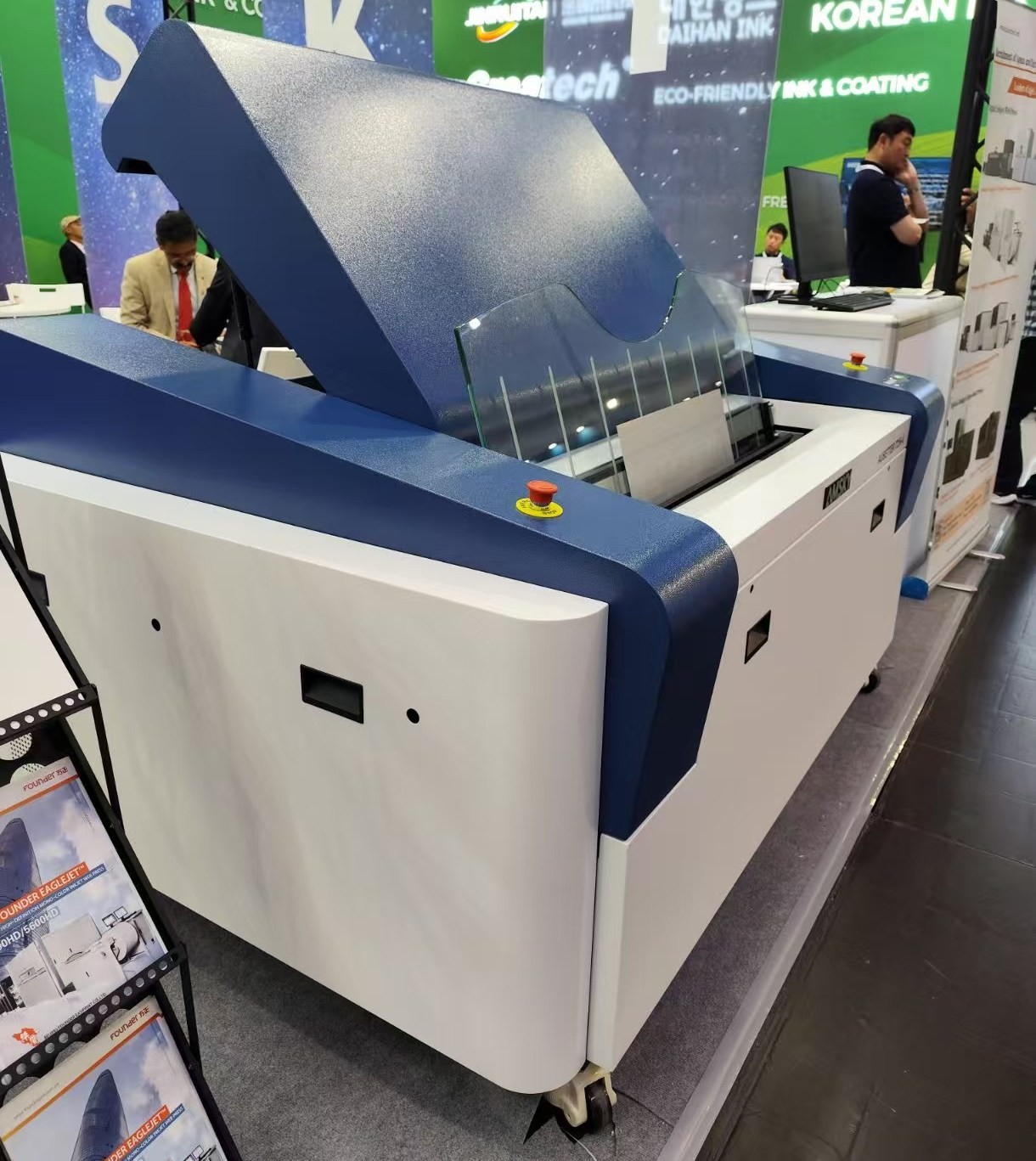

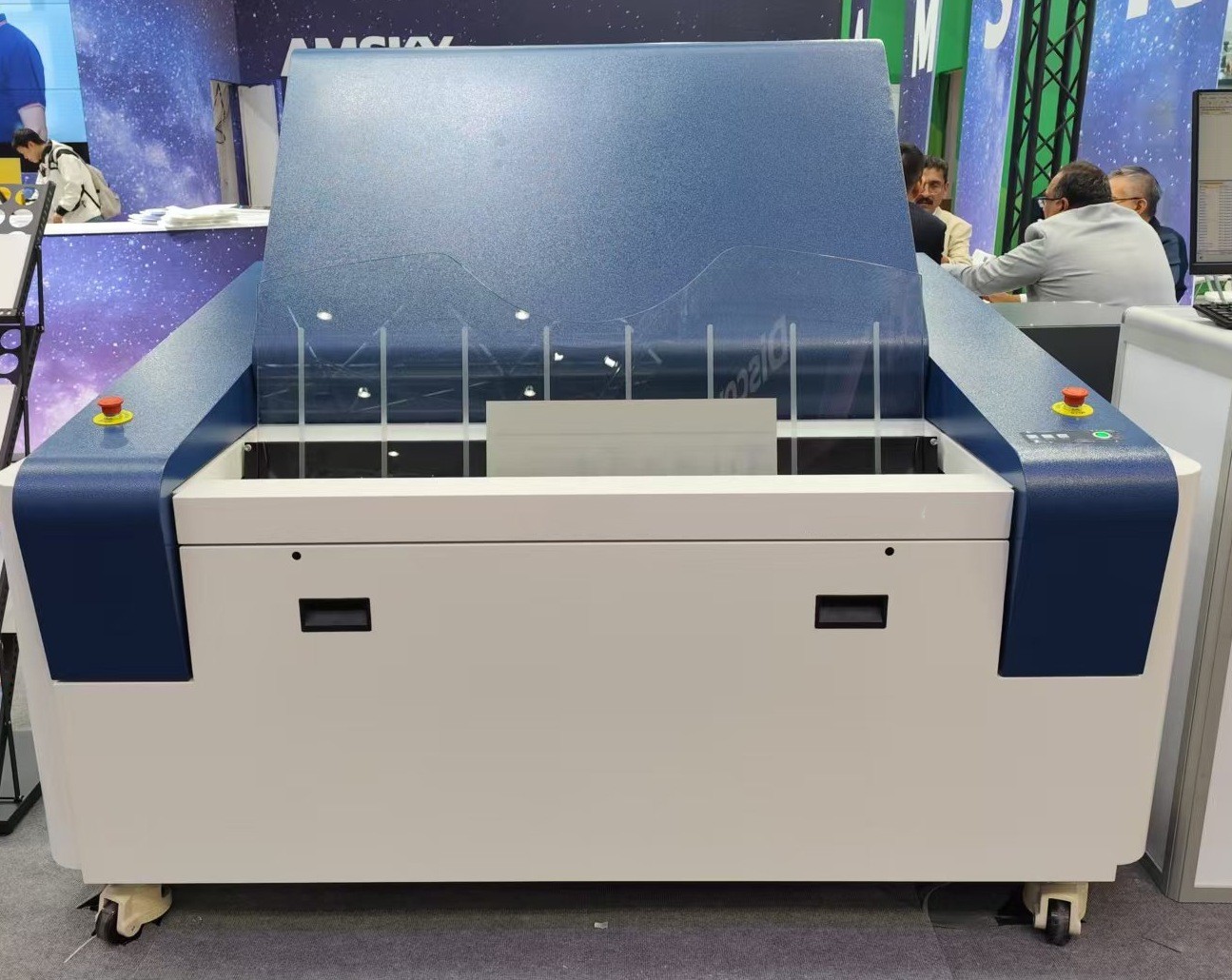

EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.
EcooGraphix T800series thermal CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.
Features
Adopt 256-channel laser light valve;
The publishing speed of folio version reaches 38-48 sheets per hour (1,030×800 mm, plate sensitivity 100mJ/cm²);
Using square light spot imaging, the color saturation is increased by 21%, and the delicate accuracy is increased by 10 times;
Linear motors provide high-precision positioning and long service life, reducing customer operation and maintenance costs.
Other Similar Models:
| ECOOSETTER T-800 Series Thermal CTP Specifications | |||
| Model | T-800F | T-800S | T-800E |
| Exposing Method | External Drum | ||
| Imaging Diodes | 64-channel | 48-channel | 32-channel |
| Discrete 830nm laser diode | |||
|
Throughput |
28plates/hour | 22plates/hour | 16plates/hour |
| 1030mm x 800mm, 2400dpi | |||
| Plate Sizes | Max. 1,163×940mm, Min. 300×400mm | ||
| Media Type | Positive 830nm Thermal CTP Plate | ||
| Plate Thickness | 0.14mm to 0.30mm | ||
| Resolution | 2400dpi(1200dpi optional) | ||
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%) | ||
| Interface | USB 2.0 | ||
| Plate Loading | Manual or semi-automatic | ||
| Net Weight | 900KGS | ||
| Machine Size | 2,320×1,080×960 mm( L×W×H ) | ||
| Power Supply | single phase:200AC,+ 6%,- 10%, power Consumption:4KW | ||
| Operation Environment |
recommended:21-25℃, Max.18-26℃, humidity:40-70% | ||
Machine Technology:
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction
Up to 300lpi screening ,2400 dpi or 2540dpi optional
2) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany.
3) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
4) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
5) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
6) Proven Worldwide market leader: (Some highlights installations)
Over 6000 units installed worldwide over past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.
