Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife

1セット
MOQ
交渉可能
価格
Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
正味重量: 4000kg
最大用紙サイズ: (L)760×(W)590
分シートサイズ: (L)200×(W)240
機械のサイズ: (L)550×(W)130×(H)180(cm)
機械速度: 0~80m/min
薄板になる温度: 80-110℃
基本情報
起源の場所: 中国
ブランド名: ECOOGRAPHIX
証明: CE,SGS
モデル番号: YFMB750
お支払配送条件
パッケージの詳細: 標準輸出梱包
受渡し時間: 30日
支払条件: LC、T/T
供給の能力: 500セット
製品の説明

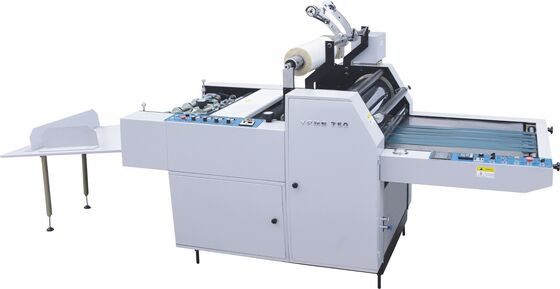

Semi Automatic A2 Book Cover Carton Thermal Film Laminator
Product Overview

The YFMB 750 is a semi-automatic precoating hot laminating machine that utilizes pre-coated film (BOPP/PET with adhesive) for both hot (heated rollers) and cold (pressure only) lamination processes.

Applications

This professional laminating equipment is designed for plastic film application on paper printed materials, widely used in:

  • Packaging materials
  • Paper boxes and cartons
  • Books, magazines, and calendars
  • Handbags and gift boxes
  • Wine packaging paper

Enhances print material quality while providing dust-proof, water-proof, and oil-proof protection. Suitable for printing and laminating enterprises of all scales.

Compatible Films: OPP, PET, PVC, METALLIC, and other precoated or thermal laminating films.

Main Features
  • Double-sided laminating (optional - both sides laminated simultaneously)
  • Dust removal system with surface preheating for enhanced brightness and fit
  • UV dryer for strong fastness, especially for embossing applications (optional)
  • Chain knife for cutting tailless and high-toughness films like PET and aluminum foil (optional)
  • Hot knife for high-speed slitting of tough films (optional)
  • Corona device for improved ink adhesion on laminated surfaces (optional)
  • Static elimination device for paper adhesion control (optional)
  • Embossing system for decorative surface aesthetics (optional)
Technical Specifications
Model YFMB-750
Max. Sheet (W x L) 590 × 760 mm
Min. Sheet (W x L) 200 × 240 mm
Machine Speed 0-80 m/min (one side)
Paper Thickness 100-450 g/m²
Voltage 380V
Paper Feed Height 680 mm
Paper Stack Height 650 mm
Laminating Temperature 80-110 ℃
Power Required 18 kW
Dimensions (L × W × H) 5500 × 1300 × 1800 mm
Net Weight 4000 kg
Semi Automatic A2 Book Cover Carton Thermal Film Laminator YFMB-750
